Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support.
- Innovative watersealed design
- Three Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- 12-Turn motor limit for 550 size motors
- 15-Turn motor limit for 540 size motors
- Integrated on/off switch
- Traxxas EZ-Set® one-button setup
- LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
- High-efficiency MOSFET transistors
The Slash includes a powerful Titan 12T 550 modified motor with internal cooling fan. The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.
Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower. Be sure to check out the videos to see it in action!
Switch on the power and drive! That's all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.
The TQ 2.4GHz micro receiver fits easily into almost any vehicle, and features dual channel-1 steering outputs. The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated.
Slash includes a 4-amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.
Slash includes a genuine iD-equipped Power Cell NiMH battery to make sure you experience all the performance that's been engineered into your Traxxas model. Accessory Traxxas iD chargers (sold separately) auto-detect Traxxas iD Power Cell batteries and automatically set and optimize charge settings for unmatched charging safety and simplicity. Power Cell packs are optimized for free-flowing power and maximum punch with premium quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire; heavy-duty welded tabs; and Traxxas' high-output, gold plated, patented, High-Current Connectors. Precision assembly with attractive, individually wrapped cells and clear overwrap complete the Traxxas Power Cell package. For even greater speed and runtime, a full line of optional Traxxas iD Power Cell NiMH and LiPo batteries are available. Power Cell batteries are Traxxas certified to maximize the performance and speed engineered into every Traxxas vehicle.
The patented Traxxas High-Current Connectors are designed to handle high-current applications and funnel maximum power to your vehicle's electronics. Traxxas High-Current Connectors let you get the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.
A race truck needs a powerful steering servo for responsive performance. The waterproof steering servo (#2075) uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for wheel-to-wheel racing in the back yard or on the track.
A patented sealed receiver box is another Traxxas innovation that puts the Traxxas Slash Short-Course Truck in a league of its own. The antenna and servo wires route neatly through a special water-tight seal. A custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. An aluminum antenna crimp nut looks good and holds the antenna tube securely in place.
The ESC, receiver, and steering servo are screwed to the chassis for ultimate mounting security. There's no servo tape to loosen over time from dirt, heat, water, and collisions.
Designed from the ground up, the Slash chassis features a 13.2" wheelbase while offering over 3.5-inches of ground clearance. The chassis includes drain holes and a battery tray channel for routing servo wires to the receiver. Optional electronic speed control mounting bosses are incorporated into the chassis, making it easy to upgrade to the Extreme Power of the Velineon Brushless Power System. For race track competition, a transponder mount is located under the front shock tower when every second counts.
The unique chassis design allows the use of 6-cell stick or side-by-side style battery packs and 7-cell stick, side-by-side, and hump battery packs for unmatched versatility. The extended chassis enables the various battery packs to be positioned forward or backward for front/rear weight bias tuning. An optional battery hold down kit is available for use with oversized batteries.
Integrated chassis nerf bars offer side body support for door to door racing action. Ruggedly designed body mounts incorporate reinforced washers to support the short course truck body during big-air jumps and high-speed runs.
Engineered to handle the abuse of bumper to bumper bashing, the scale tube-style bumpers are designed to absorb brutal impacts while looking the part of a true short course race truck.
Realistic looks, realistic performance. Slash's tires have excellent grip in the dirt and just the right amount of slide on pavement and are mounted and pre-glued on impressive 2.2" wheels.
Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. The Slash is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.
The Slash's Magnum 272 transmission is assembled with all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power is delivered to the rear wheels via durable telescoping U-joint driveshafts for maximum efficiency and articulation. The bulletproof Torque-Control slipper clutch and metal gear Magnum transmission are ready to handle any power system upgrade including the Extreme Power of the Velineon Brushless Power System.
The composite Traxxas planetary gear differential features a steel ring gear with a nylon housing for long life. It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding torque to the wheels.
Advanced Revo technology is utilized to manage the massive power from the Titan 12T motor. The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears can be removed and replaced without altering the slipper adjustment.
The sealed gearbox protects the transmission components from dirt and rocks. The molded motor plate includes finned cooling channels where the motor mounts to the motor plate. The cooling channels work in conjunction with the internal Titan 12T motor fan to pull air through the motor for superior cooling.
The Slash features heavy-duty drive yokes which are designed to provide maximum durability to withstand extreme power. The slider driveshafts are extremely durable, and they allow greater articulation for increased suspension travel.
The Slash reaches its blistering 30+mph top speed on-road using the optional 23-tooth pinion gear (included). Out of the box, the installed 16-tooth pinion gear is just right for all-around, on- or off-road action.
Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.
The Slash features heavy-duty ball bearing front steering blocks and rear hub carriers. They utilize large 5x11mm ball bearings for long-term precision performance, smooth operation, and increased durability.
Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.
The Slash's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.
The race-tuned progressive rate springs soak up the small bumps as a softer spring would, but when the conditions get rough and the jumps get big, the progressive rate springs step up to the challenge by getting firmer as the suspension is compressed. The long-lasting, white powder coated finish sets the Slash apart from the pack.
High-performance bellcrank steering system minimizes bump steer to increase cornering stability.
No need for a paint or sticker session; Slash rolls out of the box ready for action with a factory-finished and mounted ProGraphix body and decals already applied for you, so its Ready-to-Race®. Traxxas Slash Prographix bodies are available in race replica versions: Mark Jenkins Edition (Traxxas® #25), Arie Luyendyk Edition (Gunk #25), Traxxas PINK Edition and Hawaiian Edition.

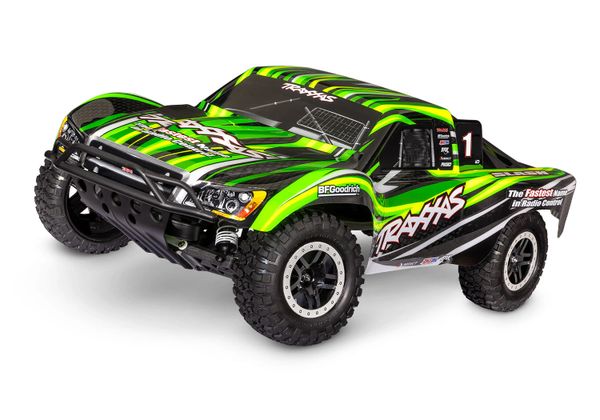

MODEL 58034-1: Fully assembled, Ready-To-Race®, with TQ™ 2.4GHz radio system, waterproof electronics with XL-5 Electronic Speed Control,Power Cell 7-cell NiHM battery, 4-amp DC Peak Detecting Fast Charger, and Race Replica painted body.
