SLEDGE RTR 6S 4WD Electric Monster Truck w/VXL-6s ESC & TQi 2.4GHz Radio 95076-4

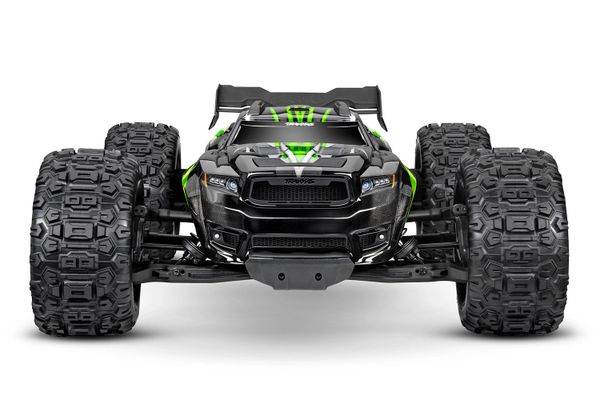

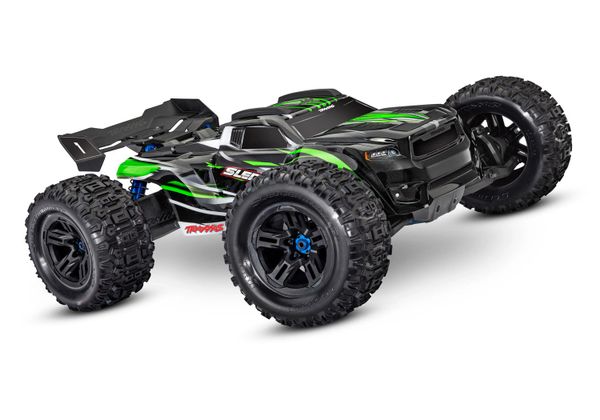

This is Traxxas 1/8 Sledge 4WD RTR Brushless Monster Truck Green Version w/ TSM TQi 2.4GHz Radio VXL-6S Power System. Engineered. Tested. Built to a higher standard. The all-new Sledge is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.

Features:

VXL-6s Waterproof Electronic Speed Control

• 6s LiPo compatible

• Integrated cooling fan

• Real-time telemetry via Traxxas Link™

• 3-LED status indicators

• Powered accessory ports

• 10-gauge silicone wire

• Patented Traxxas High-Current Connectors

Velineon® 2000kV Brushless Motor

• 4-pole 2000kV brushless motor

• 5mm output shaft

• Finned can for better heat dissipation

• Aluminum motor cradle mount

• Supports entire motor

• Reduces flex for longer gear life

Up to 70+ mph with Two 3s LiPo Batteries

Traxxas Stability Management® (TSM)

• Improves straight line acceleration and braking on low-traction surfaces

• Never dulls throttle or slows the truck

• Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4GHz High Output Radio System

• TQi™ 2-channel transmitter

• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

• Programmable multi-function knob

• Adjustable steering and throttle percentage (dual rates)

• Adjustable steering and throttle sensitivity (exponential)

• Adjustable steering and throttle end points

• High 13ms frame rate and near-zero latency for responsive control

• 5-channel micro receiver (#6533) with fail-safe security

• Patented waterproof receiver box with easy-access plug

Drivetrain

• Heavy-duty steel driveshafts

• Large 8mm steel stub axles

• Steel dogbone center driveline

• Protective rubber boots on differential inputs

Transmission

• Mod-1 pinion and spur gears

• Fixed gear mesh system

• Torque-Biasing Center Drive

Differentials

• Heavy-duty sealed 4-gear design

• Large scale steel ring and pinion gears

• Oversize 8mm output shafts

• Steel drive cups

• Easy-access bulkheads

Oil-filled GT-Maxx® Shocks

• Longer rear shocks for more travel

• Machined aluminum threaded body

• Extra-large bore and capacity

• Large-diameter damper shaft

• Lower cartridge with dual X-rings

• Height-adjustable spring retainer

• Lower spring perches bolted on

Suspension

• Performance-optimized geometry

• Ultra-tough composite arms

• Made from our strongest cold-weather material

• Molded insert for clean look

• Rear rock deflectors

• Press-in hinge pins to reduce play

• Oversize molded toe and camber links

• Heavy-duty C-hubs

• Stronger than conventional designs

• Require no adjusments

• Multiple mounting points for suspension tuning

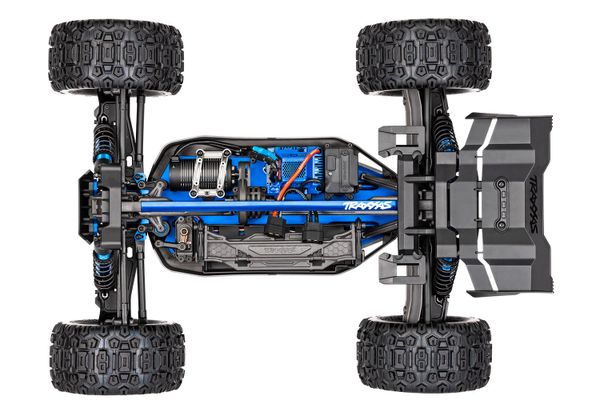

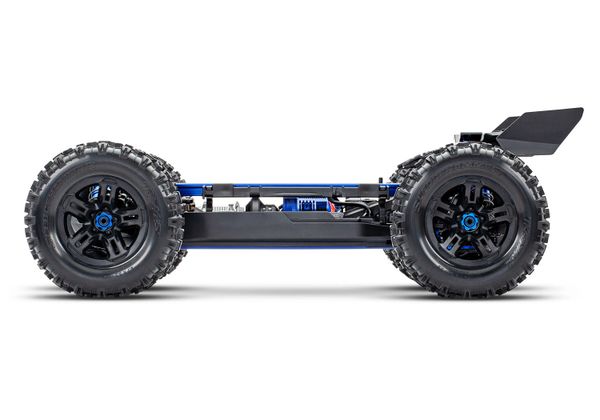

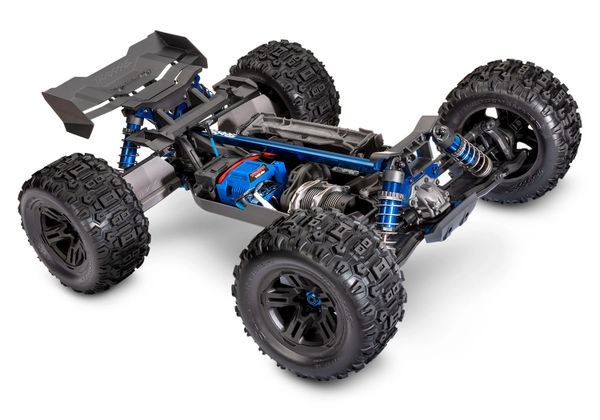

Chassis

• 3.2mm ribbed aluminum chassis

• Formed edges for improved strength

• Thick T-Bar™ for added rigidity

• Stronger than round bars

• High-strength buttressing on shock towers

• Ultra-thick 5mm 6061-T6 aluminum shock towers

• Rugged locking battery compartment with quick-release door

• Low-CG design for improved handling

• Interlocking components for tight tolerances

• Tough front and rear bumpers double as skid plates

• Hidden wire management for clean appearance

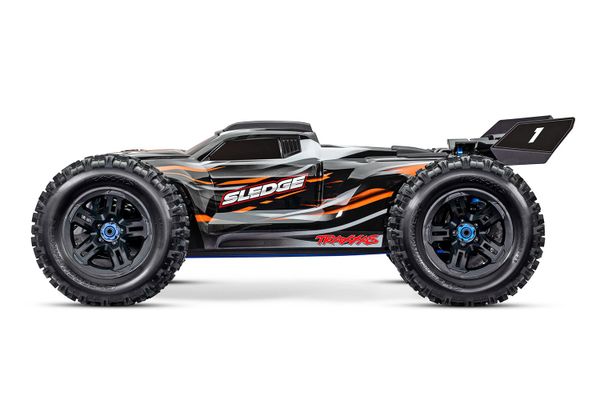

ProGraphix® Body

• Clipless body mounting system

• Rigid internal frame

• Molded body reinforcements for tear-through protection

• Protective roof skids

• Rugged high-downforce rear wing

Wheels and Tires

• Huge 6.7” Sledgehammer® all-terrain tires

• TSM-rated construction resists ballooning

• Tough 3.8” black wheels

• Splined 17mm aluminum axle hubs

Steering

• High-throw bellcrank steering design

• Heavy-duty servo saver with aluminum posts

• Metal servo horn

• Powerful #2275 metal gear servo

• 347 oz-in torque

• Fully waterproof

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Specifications:

Length (including wing): 23.78 inches (604mm)

Front Track: 18.10 inches (459mm)

Rear Track: 18.10 inches (459mm)

Ground Clearance: 1.95 inches (50mm)

Weight (no battery): 12.74 pounds (5.77kgs)

Height (overall): 8.43 inches (214mm)

Wheelbase: 15.10 inches (384mm)

Shock Length (front): 5.12 inches (128mm)

Shock Length (rear): 5.67 inches (144mm)

Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)

Wheel Diameter: 3.8 inches (97mm)

Speed Control: Velineon® VXL-6s (#3485)

Motor (electric): Velineon® 2000kV Brushless

Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)

Differential Type: Sealed, hardened steel bevel, limited slip

Gear Pitch: Module 1.0

Chassis Structure/Material: 3.2mm aluminum plate

Brake Type: Electronic

Drive System: Shaft-driven 4WD

Steering: Double-shear bellcrank w/metal servo arm

Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer® Tires & foam inserts 6.7x3.8

Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver

Servo: 2275 Waterproof, metal-gear (347oz-in torque)

Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)

Skill Level: 4

Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm, Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm

Includes:

• Sledge, Ready-To-Race® monster truck with Traxxas 2000kV brushless motor

• VXL-6s waterproof electronic speed control with integrated telemetry

• Quick Start Guide

• TQi™ 2.4GHz radio system

• High quality maintenance tools

• Jumper plug (for 4s battery use)

Requires:

• LiPo Batteries

• LiPo Balance Charger with iD™

• AA Alkaline Batteries (4 pcs)
